As for an insulator of Il Shin Teflon industries Co., Ltd., it is a material for high voltage circuit breakers, and you can see it as a finely-processed teflon component that is used for SF6 gas breaker that opens and closes electric circuits of power cables, distribution lines of more than 66kV-high voltage.

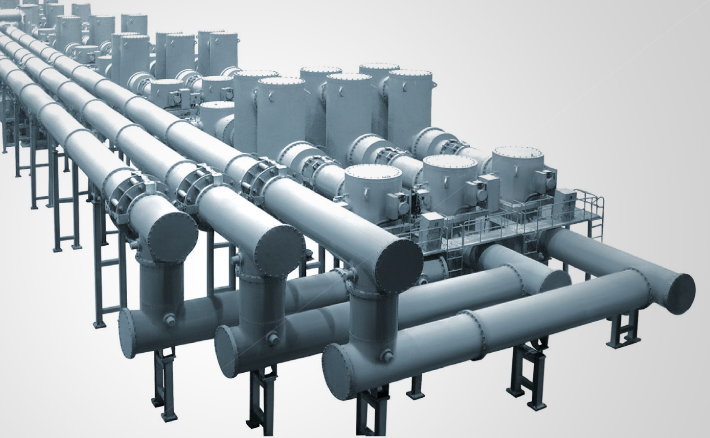

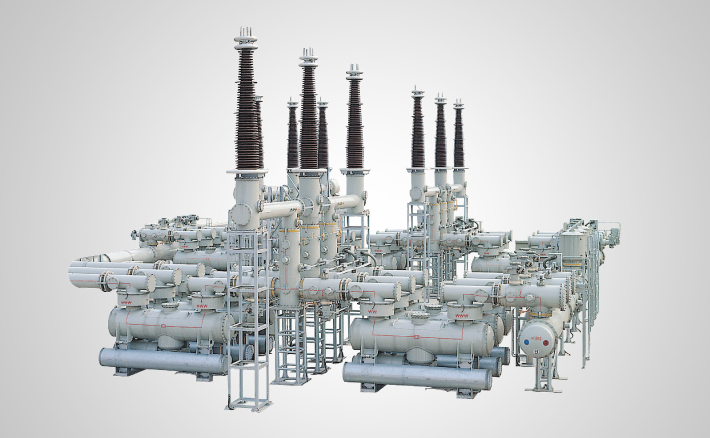

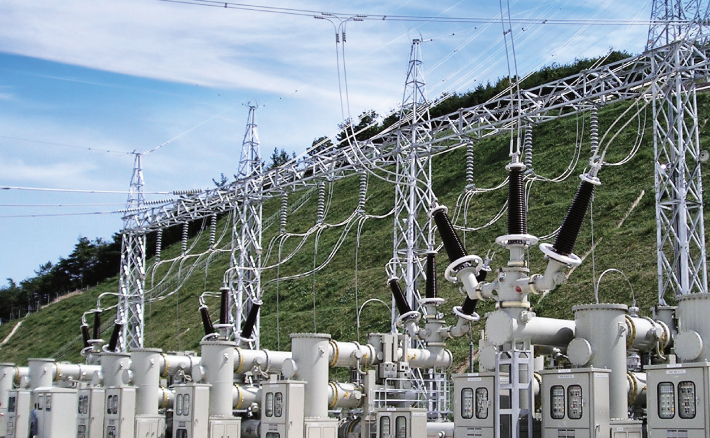

In terms of how to break electric currents of Gas Insulated Switchgear (GIS), we choose contact with and separation from fixed electrodes. Intense ARC, heat and gas occur between those two operating electrodes, and teflon engineering materials are known for tolereance to such conditions.
Range of use
from 7.2kV to 800kV
Materials for insulation
- pure PTFE | PTFE & 0.1% MOS2 OR 0.2% MOS2
- PTFE & 10% AL2O3
- PTFE & 20% AL2O3 PTFE & 15~20% GLASS FIBER
- PTFE & 20%POLYIMIDE
- GLASS FIBER
- PTFE & 5% BN
Physical properties
2013. 12.03 KTR 시험결과 기준
| Item | Specific gravity | Tensile strength (Right-angled direction of molding) |
Elongation rate (Right-angled direction of molding) |
Hardness |
|---|---|---|---|---|
| Material/Test method | ASTM D638 g/㎤ | ASTM D792 ㎫ | ASTM D792 % | Shore D |
| Pure PTFE | 2.147 | 45.9 | 392 | 60 |
| PTFE & 10% AL2O3 | 2.214 | 23.3 | 436 | 61 |
| PTFE & 15% GLASS FIBER | 2.127 | 16.5 | 310 | 56 |
| PTFE & 20% POLYIMIDE | 1.978 | 27.7 | 356 | 57 |

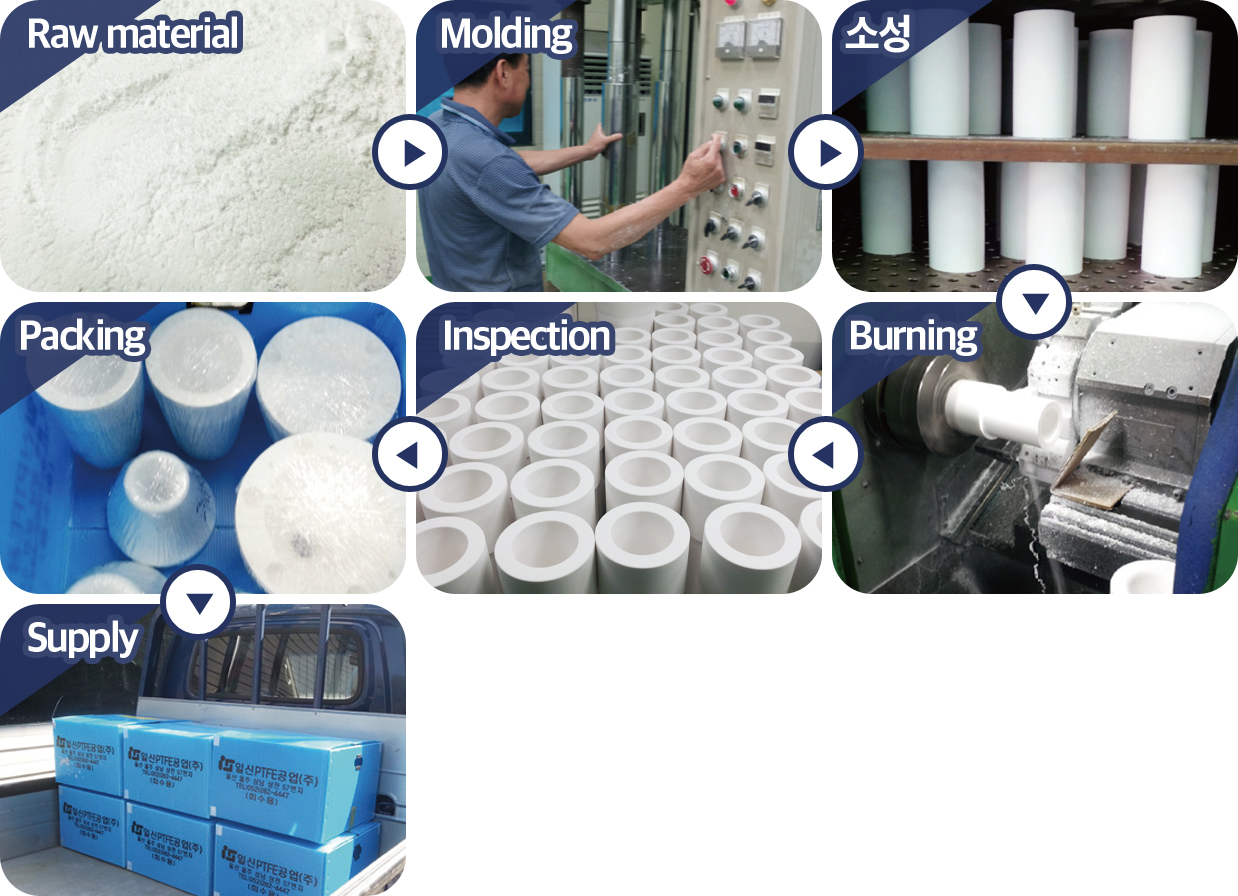

Production Process
Lathe-processed goods
Pure materials ((in case of filling materials, a mixing process precedes molding.)
