Orkot
Orkot®

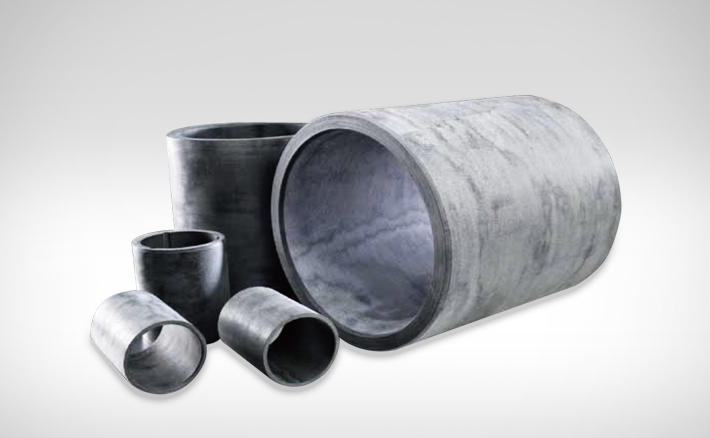

Marine Bearings
As a competent manufacturer of bearing, we have been producing various products used in the fields of shipbuilding and industry for the last 25 years, and we are honored to introduce ourselves to you are the internationally-recognized company of the best skills and productivity.
For further information visit : www.orkot.com
| Mechanical Properties | TLM Marine metric | TXM Marine metric |
|---|---|---|
| Compressive Strength | ||
| Normal Laminate | 300 N/㎟ | 280 N/㎟ |
| Parallel to Laminate | 90 N/㎟ | 90 N/㎟ |
| Tensile Strength | 60 N/㎟ | 55 N/㎟ |
| Flexural Strength | 65 N/㎟ | 65 N/㎟ |
| Shear Strength | 80 N/㎟ | 80 N/㎟ |
| Hardness - Rockwell M | 90 | 90 |
| Density | 1.3g/㎤ | 1.3g/㎤ |
Orkot® TLM & TXM Marine Bearings – Proven Benefits:
- Extensive stock available
- 24 hour turnaround for non-stock sizes
- Classification approval for up to 15N/㎟
- Approved dry running capability
- Virtually no swell in water
- Low coefficient of friction
- Environmentally friendly
- Tolerant to edge loading
Both the intermediate (pictured above) and aft bearings were fitted with thermocouples to monitor the bearing surface temperature during the basin trials
A typical ropeguard and coupling cover after docking, shown here on HMS Westminster (Courtesy UK MoD)
